Product Code: 70-1120-GLH0002 (GL-15L)
Electric Handpiece
Prismatik Dentalcraft, Inc.

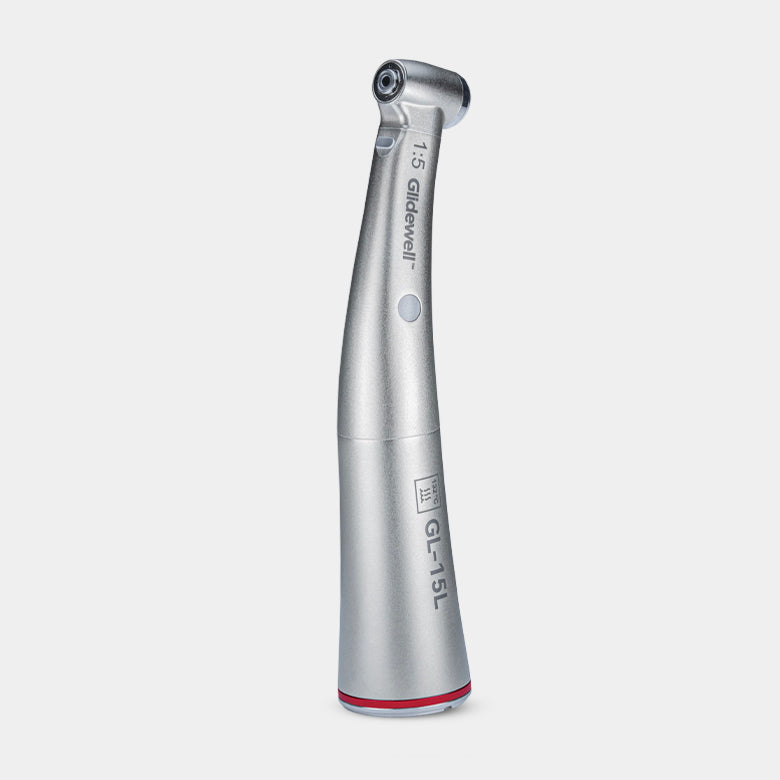

The Glidewell™ Contra-angle Electric Handpiece (GL-15L) is equipped with German Myonic bearings with a swing amplitude of less than 0.01 mm, ensuring precise and stable operation. It is fabricated from high-precision 7- and 9-axis machines from Switzerland and Japan to ensure high accuracy and stability. The 91.5-degree angled head is designed for precision in small spaces and is ideal for anterior restorations and polishing. The handpiece features LED fiber-optic lighting, delivering uniform illumination and clear field of view for more precise and efficient procedures.
It is used to clamp rotating instruments — such as burs, dental drills, and dental files — and drive their movements for dental operations, such as cutting, grinding, and drilling. Features include:
- Low noise
- Adjustable, accurate speed; stable and strong cutting force
- Long service life
- Adaptable to electric motor that has standard E-shape connector
Technical Specifications
| Model | GL-15L |
|---|---|
| No-load speed | ≤ 212500 r/min |
| Chuck type | Mechanical chuck |
| Speed ratio | 1:5 |
| Handpiece Coupling type | Standard E-type interface (ISO 3964) needle |
| Surgical instruments | Type 3 1.6 mm diameter bur in ISO 1797-1 |
| Bur length | 20–25 mm |
| Maximum diameter of bur front end | 2 mm |
| Shank size | ISO 1797-1 diameter 1.6 mm |
| Minimum suitable length of shank | 12.5 mm |
| Cooling pressure setting range | 1.5-3 (Recommend 2) bar |
| Cooling air consumption at 2 bar air pressure | > 1.5 Nl/min |
| Lighting mode | Optical fiber (Illumination of output end > 7000lx) |
| Lighting source | LED SG15L (Illumination: 20000-65000lx) |
| Water cooling method | At 200 kPa (2.0 Bar), the water flow of contra-angle handpiece should not be less than 50 mL/min |
One-year warranty covers defects in materials and workmanship under normal use. The warranty does not cover damage resulting from misuse, accidents, or improper handling — including, but not limited to, malfunctions caused by dropping the handpiece or other physical impacts. For full warranty terms and conditions, please contact our customer support team.
