Product Description

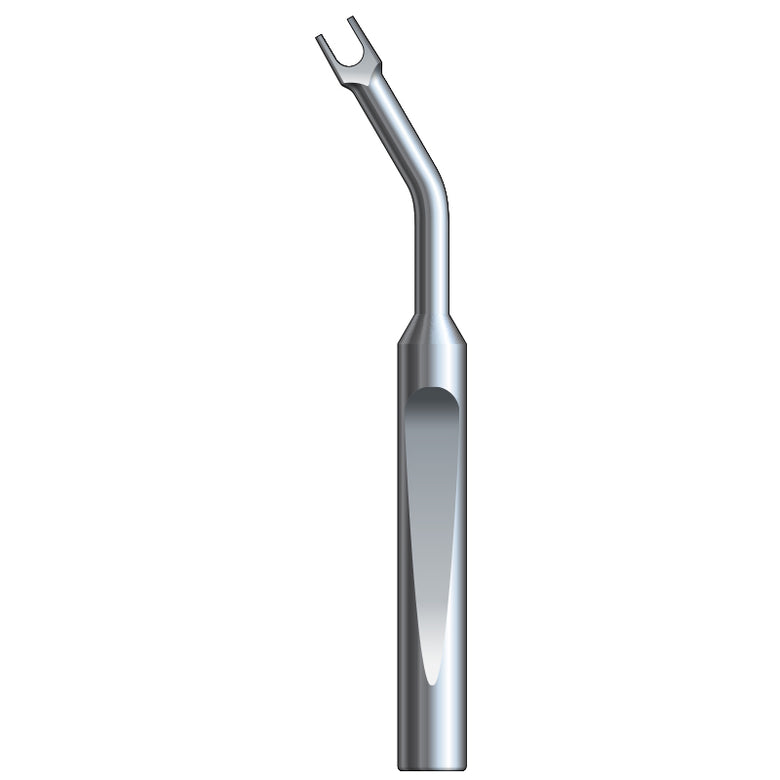

The Hahn^™ Tapered Implant Mount Wrench is a manually powered hand instrument designed to help achieve proper alignment between a Hahn Tapered Implant Guided Mount and its corresponding guide sleeve.

• Machined from corrosion-resistant, surgical stainless steel

Accessories

None

Contraindications

The Hahn Tapered Implant Mount Wrench should only be used for the application described.

Do NOT rotate after the flange on the Guided Mount fully meets the guide sleeve and the corresponding hexes are aligned. Doing so may cause the osteotomy to strip.

Sterility

Hahn Tapered Implant Guided Mount Wrenches are shipped NON-STERILE. Non-sterile items must be cleaned, disinfected, and sterilized prior to clinical use, according to a validated method.

• Cleaning: Wash using a broad spectrum cleaning solution, followed by thorough rinsing and drying.

The recommended disinfection process is based on ANSI/AAMI ST79 guidelines, as follows:

• Disinfection: Immerse abutments in disinfectant¹, rinse with distilled water and dry.

The recommended sterilization process is based on the ANSI/AAMI/ISO 17665-1 and ANSI/AAMI ST79 guidelines, as follows:

• Sterilization: Gravity-fed sterilizers: Autoclave in sterilization pouch for 15 minutes at 132^°C (270^°F). Allow sterilized components to dry for at least 30 minutes.

NOTE: The validated procedures require the use of FDA-cleared sterilization trays, wraps, biological indicators, chemical indicators, and other sterilization accessories labeled for the sterilization cycle recommended. The healthcare facility should monitor the sterilizer for the facility according to an FDA-recognized sterility assurance standard such as ANSI/AAMI ST79.

¹Oral disinfectant containing Chlorhexidine is recommended; refer to the disinfectant manufacturer's instructions.

Technical Specifications

Connection Type: 4 mm hex
