Product Description

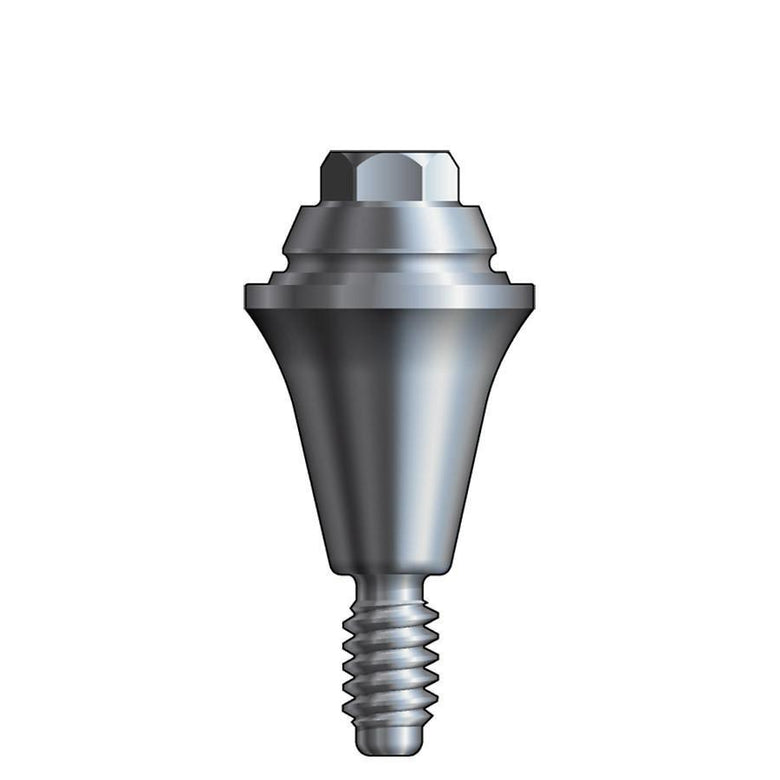

Hahn Tapered Implant Multi-Unit Abutments are prefabricated, screw-retained intraoral abutments intended to be connected directly to endosseous implants in partially or fully edentulous patients for the retention of cast or milled bar overdentures. For implant-supported prostheses, six or more implants are recommended in the maxilla, four or more in the mandible. If clinical conditions dictate fewer implants, an implant-retained, tissue-supported prostheses is indicated.

These straight multi-unit abutments lack any anti-rotational features at the implant-abutment interface. The apical portion of a straight multi-unit abutment is threaded for integration with the internal cavity of a seated implant. For abutment delivery, the occlusal surface features a male hex head compatible with the multi-unit driver recommended by the implant manufacturer. To allow for the attachment of a screw-retained or fixed-removable dental prosthesis with a multi-unit restorative screw (prosthetic screw), Hahn Tapered Implant Multi-Unit Abutments feature a female connection port at the coronal apex.

• Precisely machined from titanium alloy
• Available with a variety of collar heights to achieve optimal emergence from shallow or deep gingival wells
• Delivered sterile, with a carrier color-coded to indicate the restorative platform of the seated implant

Accessories

Contraindications

Following successful implant placement, verify primary stability before proceeding with the delivery of a permanent or provisional prosthesis.

Sterility

Hahn Tapered Implant Multi-Unit Abutments are shipped STERILE. They are for single-use only, prior to the expiration date. Do not use sterile products if the packaging has been compromised or previously opened. Users are advised to visually inspect packaging to ensure seals and contents are intact prior to use. Do not re-sterilize. Please refer to the individual product label for all relevant product information and cautions.

Technical Specifications

Height: 2.5 mm

Platform: Ø3.5/4.3

Material Composition: Titanium alloy (Ti6Al4V)
